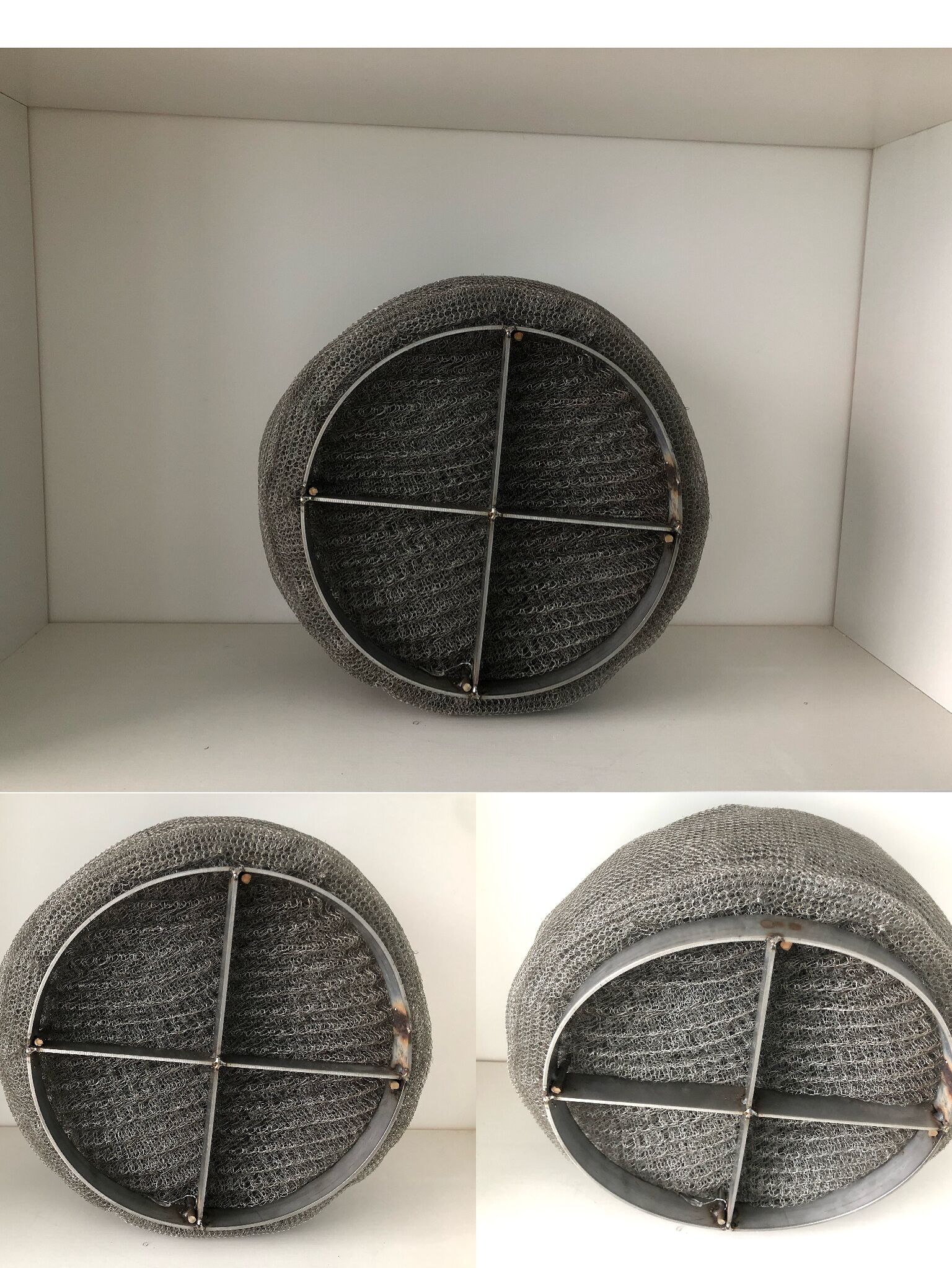

SS 304 / 316 Wire Mesh Demister Pad For Gas Liquid Separation Air Purification
Demister Pad Description
Wire Mesh Demister Pad is also named Gas-liquid filter, gas liquid mesh, foam net, wire mesh demister, knitting mesh, is one of kind of using crocheted weaving woven wire mesh. Products are mainly used for gas-liquid separation anddespumate in oil, chemical industry, automobile industry, environmental protection. Can also be used electromagnetic shieldling in the construction engineering.
Material of Demister Pad
Stainless steel:304,304L,316,316L etc.
Plastic:PP,HDPE,PVDF etc.
Also produce special material according to customer's request.
Features of Demister Pad
> High removal efficiency
> Negligible pressure drop, less than 25mm of water gauge
> No maintenance or service required
> No corrosion or temperature limitations
> Easily installed in existing vessels
> No limitation on size or shape
Demister Pad Specification
| Items | Wire Diameter mm | width tolerance | Bulk Density | Surface Area | Voidage | The layers wire mesh of every 100 mm thick mat |
| Flat Wire | Round wire | mm | Kg/m3 | m2/m3 | ε |
| Standard type | 0.1*0.4 | 0.23 | +10
-0 | 150 | 475 | 320 | 0.981 | 25 |
| Efficient type | 0.1*0.4 | 0.19 | +10
-0 | 182 | 626 | 484 | 0.977 | 32 |
| High-penetration type | 0.1*0.4 | 0.23 | +10
-0 | 98 | 313 | 217 | 0.9875 | 20 |
Application
Electrical products EMI device
Screen demister
Oil and Gas Separator
dust, the Environmental Protection
motor vehicles, tractors Filter
various occasions of separation, filtration devices
automobile parts in sealed shock absorber (shock absorber), silencers and exhaust purification devices, etc.
Company Profile:
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
