Chemical Column Wire Mesh Demister Pad For Liquid And Gas Seperation
Description of Demister Pad
Wire mesh mist eliminator also known as wire mesh demister, is a kind of vapor liquid separating device.It is made up of many corrugated gas liquid filter net,a grid and a fixed distance rod .It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.It can ensure the mass transfer efficiency,reduce the loss of valuable materials after operation of compressor, commonly setted in the top of device.It is widely used in gas-liquid separation in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.
Size and structure can be customized according to customer's drawings.
Product Feature of Demister Pad
- Demisters consist of a collection of meshes of woven threads that form a dense body designed to separate liquids in the form of small particles contained in steams and gases.
- They prevent emission of waste contaminants such as sulphur compounds, salt water, sand, hydrocarbons, etc. into protected interior spaces or out into the atmosphere.
- Designs are customised to the specifications of the fluids being processed. They remove 99.9% of liquid content in gas.
- When gas is passed through the demister, existing liquid particles in the gas hit the demister threads, build up due to molecular attraction, increase in size until they detach due to gravity and flow toward the drain.
- Wide range of work conditions in separation of liquid contaminants (including solids and associated gases in the flow of gas being processed: very fine sand, hydrocarbons, etc).
- High efficiency through various configurations and equipment with various stages.
- Flexible design conditions: Minimal pressure loss allowing for high gas speeds.
- Integrated purge or drainage systems.
- Various materials.
- Demisters are basic pieces of equipment in desulphurisation plants, for incineration, combustion gas treatment, mould, odour, bacteria, and corrosion removal due to condensation, etc.
Product Specification of Demister Pad
| The following dimensions are for reference |
| V-wire | 20 | 30 | 47 | 60 | 68 | 90 | 118 | 130 | 158 | 191 |
| Width | 0.50 | 0.76 | 1.19 | 1.52 | 1.80 | 2.26 | 2.95 | 3.30 | 4.01 | 4.95 |
| Height | 1.01 | 1.27 | 2.23 | 2.54 | 4.50 | 3.50 | 4.70 | 6.35 | 6.07 | 9.22 |
| Accept custom size |
| Supporting rod | 63 | 025 | 93 | XJR | 156 | SR250 | SR475 |
| Width | 1.52 | 1.00 | 2.26 | 2.26 | 3.84 | 2.50 | 2.50 |
| Height | 2.54 | 1.50 | 3.51 | 4.80 | 5.51 | 5.60 | 6.30 |
Application of Demister Pad
*Elimination of toxic air pollutants
*Reduction of solvent losses in absorbers ,scrubbers and distillation equipment
*Optimization in kettles ,reboilers and crystallizers
*Elimination of entrainment
*Used in liquid -liquid systems
*Used as gaskets in cable, automobile and computer industry
*Gas-liquid ,solid-liquid separation
*Desalination plants
Packaging of Demister Pad
1.Product are packed by Air Bubble Film. suitable for long distance transportation by sea,It can reduce abrasion when transport.
2.As customers' requirements

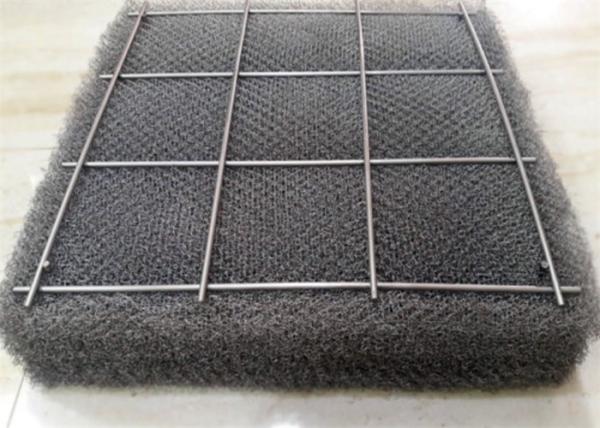

Product Show of Demister Pad
